患者：      女           王某某            年龄           62岁

                主  诉:   要求修复缺失牙

            现病史：患者自觉后牙缺失影响进食来诊

            既往史：否认有系统性疾病

         口内检查：26,27缺失，牙槽嵴丰满度良好，对颌牙无明显伸长。

               CT示：26，27骨密度良好。

                          26骨高度9.47mm，骨宽度10.66mm。

                          27骨高度9.27mm，骨宽度11.23mm。

                 诊断：26.27牙列缺损

          治疗方案：26，27种植修复（选用AIC   TSIII种植体）

治疗过程如下图：

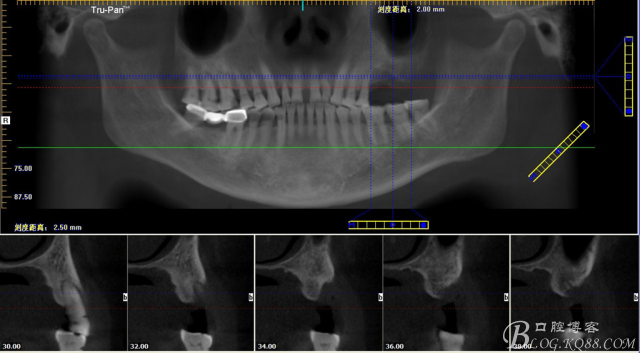

图1                                                            术前CT

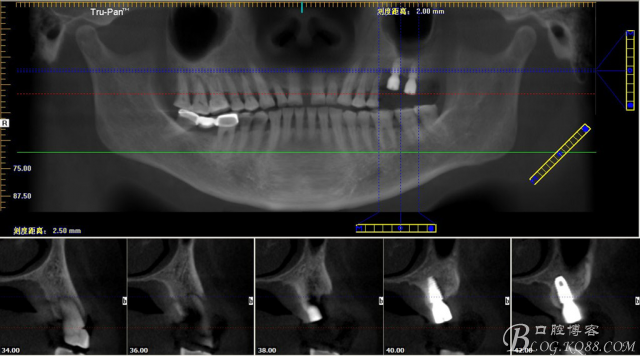

图2                                                                     术后CT

图3                                                                     牙列缺失

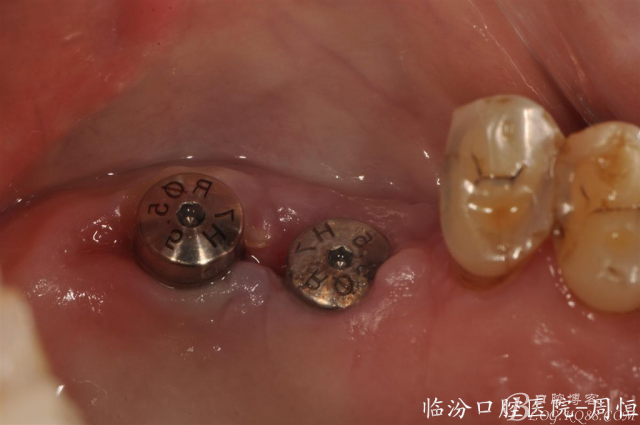

图4                                                                    种植后愈合基台

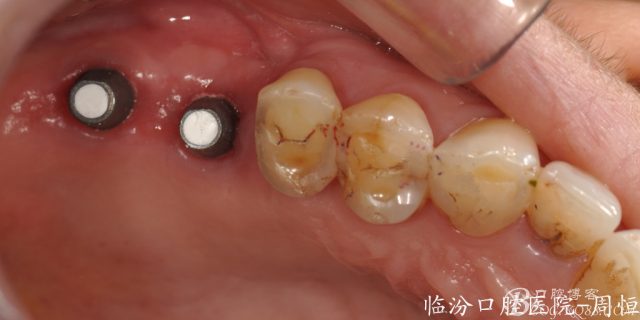

图5                                                                      3个月后袖口形成

图6                                                                         修复前咬合照

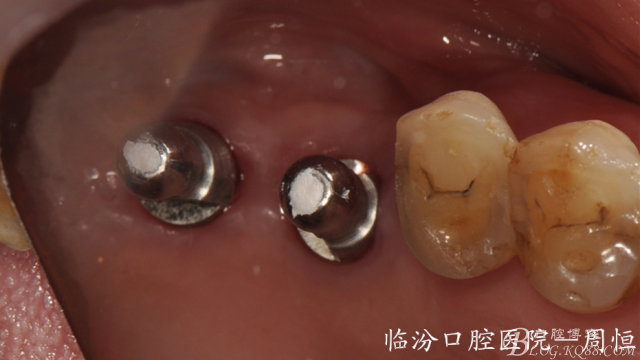

图7                                                                       采用5.0印模帽

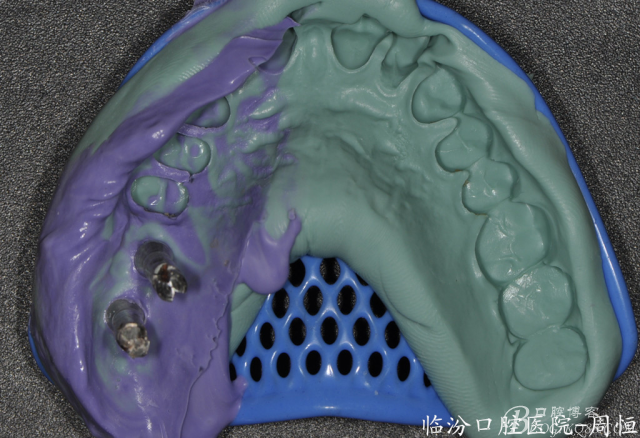

图8                                                                 硅橡胶取模

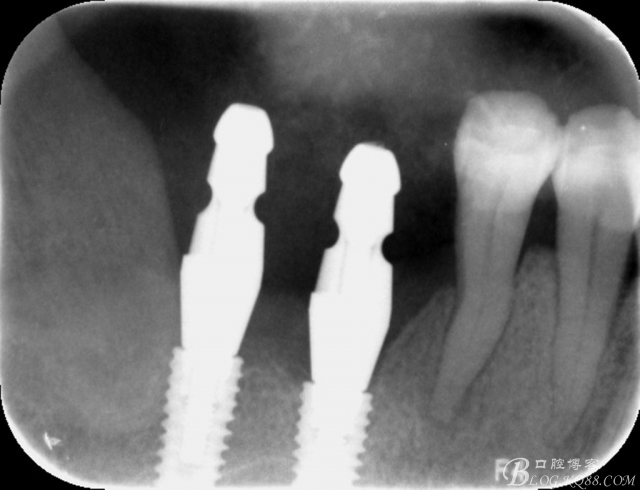

图9                                                                          X示印模帽就位

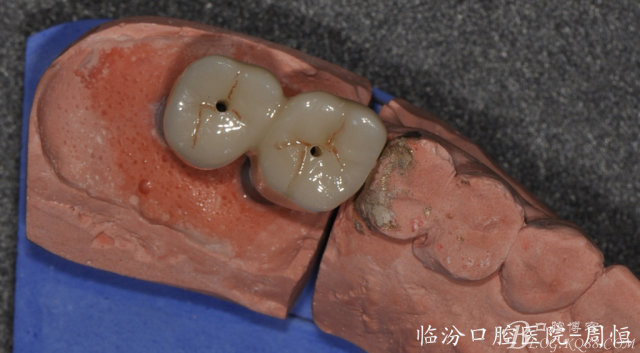

图10                                                                  模型观修复体

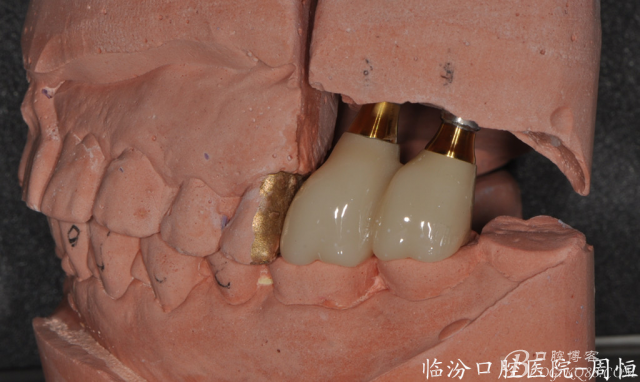

图11                                                                 模型观咬合照

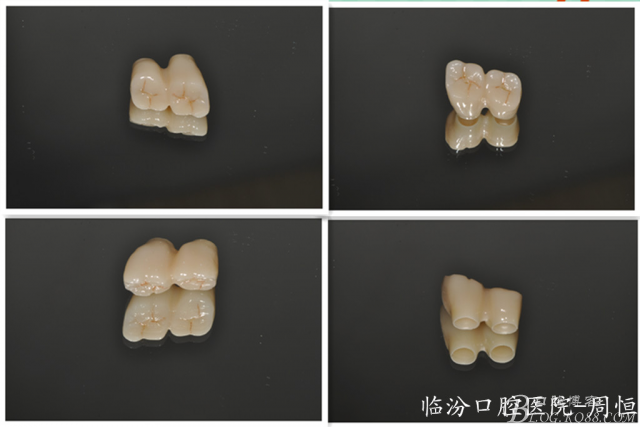

图12                                                                      全锆修复体

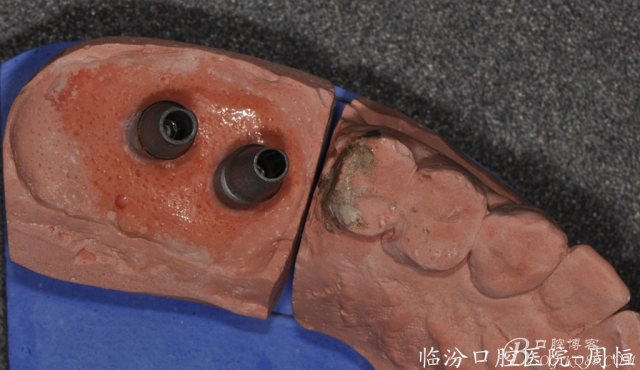

图13                                                                        模型观修复基台

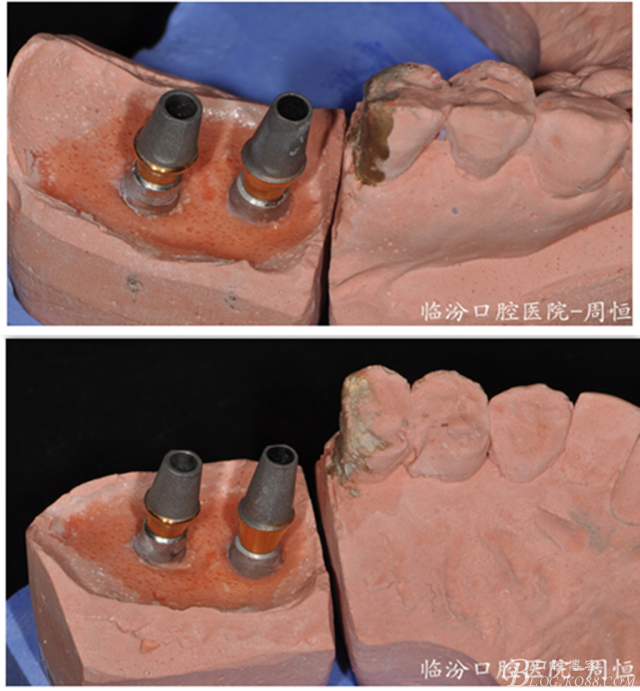

图14                                                                     修复基台颊舌侧

图15                                                                       修复基台就位

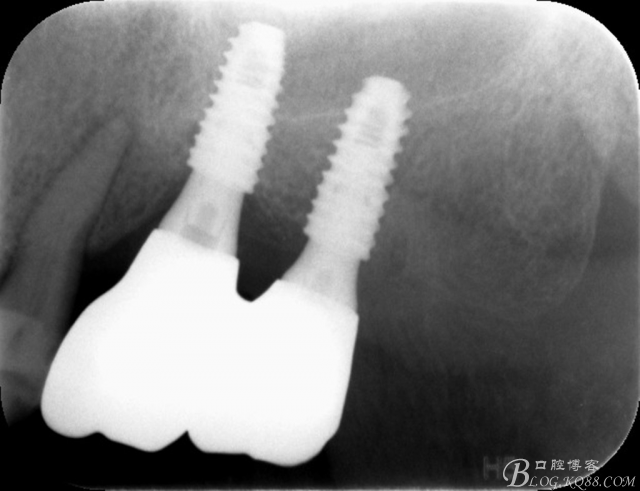

图16                                                                   X示修复体就位

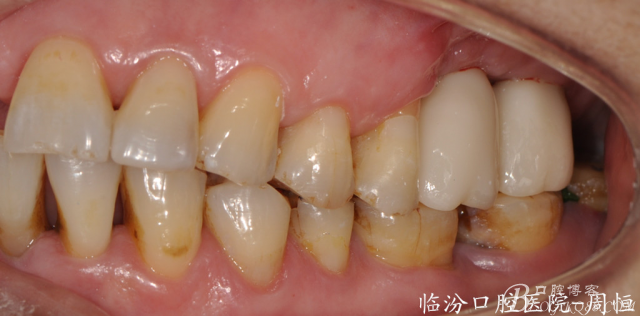

图17                                                                术后咬合

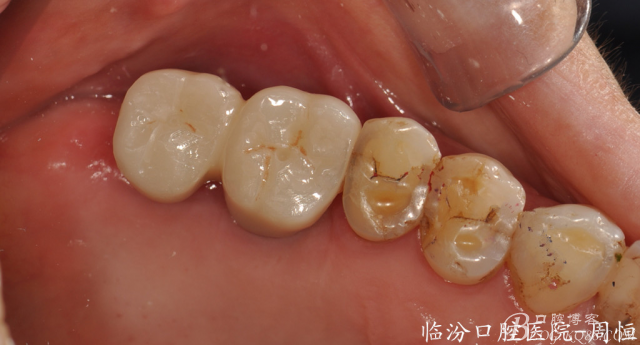

图18                                                                       术后（修复完成）

请大家多多提出宝贵意见。
